SS08EN
Overall Width ：0.8m
Working Height：9.95m
Electric drive with zero-emission and low noise.
Compact and maneuverable design, suitable for flat and narrow spaces
keyword：
Articulated Boom Lift

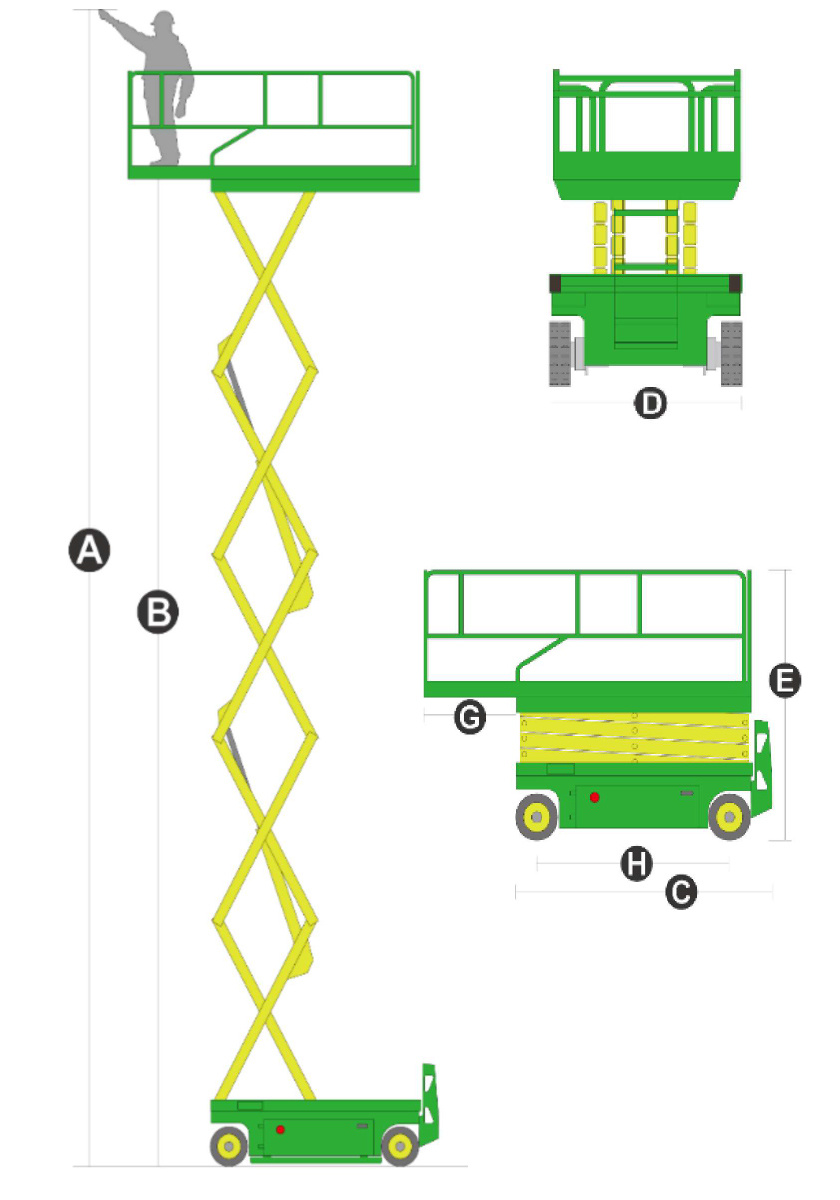

Measurements
| Measurement | Metric | Imperial | |
| Maximum working height | A | 9.95 m | 32 ft 8 in |
| Maximum platform height | B | 7.95 m | 26 ft 1 in |
| Machine length | C | 2.47 m | 8 ft 1 in |
| Machine width | D | 0.81 m | 2 ft 8 in |
| Machine Height(rails up) | E | 2.35 m | 7 ft 9 in |
| Machine Height(rails folded) | 1.97 m | 6 ft 6 in | |
| Platform length | 2.29 m | 7 ft 6 in | |
| Platform width | 0.8 m | 2 ft 7 in | |
| Platform extension length | G | 0.91 m | 3 ft |
| Ground clearance(stowed) | 0.11 m | 4 in | |
| Ground clearance(raised) | 0.02 m | 1 in | |
| Wheelbase | H | 1.89 m | 6 ft 2 in |
| Tire | 0.38×0.13 m | 1 ft 3 in×5 in |
Weight
| Weight | |||
| Machine weight | 2020 kg | 4453 lb 5 oz |
Productivity
| Performance | |||
| Workload | 230 kg | 507 lb 1 oz | |
| Workload-Extended Platform | 120 kg | 264 lb 9 oz | |
| Drive speed - stowed | 3.5 km/h | 2.17 mph | |
| Drive speed - raised | 0.8 km/h | 0.50 mph | |
| Turning radius (inside) | 0 m | 0 ft 0 in | |
| Turning radius (outside) | 2.1 m | 6 ft 11 in | |
| Allowable working angle | 3°/1.5° | ||
| Ascent/descent speed | 40/50 s | ||
| Max. occupancy (in/out) | 2/0 | ||
| Maximum climbing ability | 25% | ||
Power
| Power | |||
| Power | 24V DC | ||
| Battery capacity | 230 AH | ||
①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
