AB19E

The AB19E electric articulated boom lift is an advanced electric articulated boom lift powered by electricity, featuring low noise and zero emissions. This electric articulated boom lift offers simple operation and is equipped with an automatic leveling system to ensure safe and stable performance, making it an ideal electric articulated boom lift for elevated work scenarios.

Working Height：21m
Overall Width ：2.5m
Platform capacity：230kg

keyword：

Electric Articulating Boom Lift

Classification：

Electric Articulating Boom Lift

Tel：

+86 0731-84822566

E-mail：

AB19E

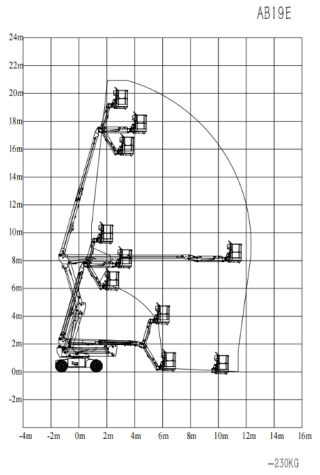

Measurements

Measurement	Metric	Imperial
Measurement	Metric	Imperial
Working height max.1	21 m	68ft11in
Platform height max.	19 m	62ft4in
Horizontal reach max.(unrestricted)stricted)	11.6 m	38ftlin
Up and over clearance max.	8 m	26ft3in
Machine length	8.6 m	28ft3in
Machine width	2.5 m	8ft2in
Machine height	2.5 m	8ft2in
Platform length	2.2 m	7ft3in
Platform width	0.8 m	2ft7in
Ground clearance -center	0.33 m	lftlin
Wheelbase	2.5 m	8ft2in
Tire	315/55D - 20

Weight

Weight	Metric	Imperial
Machine weight²	9260 kg	20414lb13oz

Performance

Performance	Metric	Imperial
Rated load	230 kg	507 lb1oz
Drive speed-lowered travel position	4.8 km/h	2.98 mph
Drive speed -elevated travel position	0.8 km/h	0.50 mph
Turning radius (inside)	3.1m	10ft2in
Turning radius (outside)	5.2m	17ftlin
Turntable tailswing	0.3m	oft12in
Gradeability- stowed position	45%
Max. platform occupancy	2
llaltitagfntobcksitosi	4.5°
Turntable slewing	360°
Platform rotation	160°

Power

Power
Power		8V DC/51.2V DC
Battery capacity		420 AH/400 AH

①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
