AB14E

The AB14E electric articulated boom lift is a high-performance electric articulated boom lift powered by electricity, enabling low-noise and zero-emission environmentally friendly operation. This electric articulated boom lift is equipped with a powerful four-wheel drive system, ensuring that the electric articulated boom lift operates efficiently and safely across various job sites. It is the ideal electric articulated boom lift for demanding aerial tasks.

Working Height：16m
Overall Width ：2.32m
Platform capacity：230kg

keyword：

Electric Articulating Boom Lift

Classification：

Electric Articulating Boom Lift

Tel：

+86 0731-84822566

E-mail：

AB14E

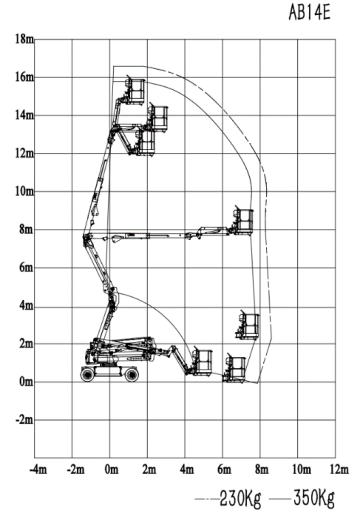

Measurements

Measurement	Metric	Imperial
Measurement	Metric	Imperial
Working height max.1	16 m	52ft6in
Platform height max.	14 m	45ft1lin
Horizontal reach max.(restricted)	6.8m	22t4in
Horizontal reach max.(unrestricted)	7.6m	24ft11in
Up and over clearance max.	7.65m	25ft1in
Machine length(stowed)	6.53 m	21ft5in
Machine width	2.32 m	7ft7in
Machine height	2.34 m	7ft8in
Platform length	1.8 m	5ft11in
Platform width	0.8m	2ft7in
Ground clearance-center	0.24 m	oft9in
Wheelbase	2.35 m	7ft9in
Tire	250 - 15

Weight

Weight	Metric	mperial
Machine weight²	6900 kg	15211 lb 14oz

Performance

Performance	Metric	Imperial
Rated load	230 kg	507lbloz
Rated load- restricted	350 kg	771 b10oz
Drive speed -lowered travel position	4.8 km/h	2.98 mph
Drivespeed-elevatedtravelposition	0.8 km/h	0.50 mph
Turningradius inside)	1.9 m	6ft3in
Turning radius (outside)	4.7 m	15ft5in
Turntable tailswing	0 m	oftoin
Gradeability- stowed position	30%
Max.platformoccupancy	2
Allowable tilt angle (front to back/sideto side)	5°
Turntable slewing	355°
Platform rotation	160°

Power

Power
Power (AGM battery/lithium battery)		48V DC/51.2V DC
Battery capacity		351AH/400 AH
