AB16F

The AB16F diesel articulated boom lift delivers powerful performance. As a reliable diesel articulated boom lift, it offers an impressive 45% gradeability and outstanding all-terrain adaptability. This diesel articulated boom lift is easy to operate and ensures stable, reliable performance, making the diesel articulated boom lift ideal for a variety of challenging job sites.

Working Height：18m
Overall Width ：2.5m
Platform capacity：230kg

keyword：

Diesel Articulating Boom Lift

Classification：

Diesel Articulating Boom Lift

Tel：

+86 0731-84822566

E-mail：

AB16F

Measurements

Measurement	Metric	Imperial
Measurement	Metric	Imperial
Working height max.1	18m	59ft1in
Platform height max.	16m	52ft6in

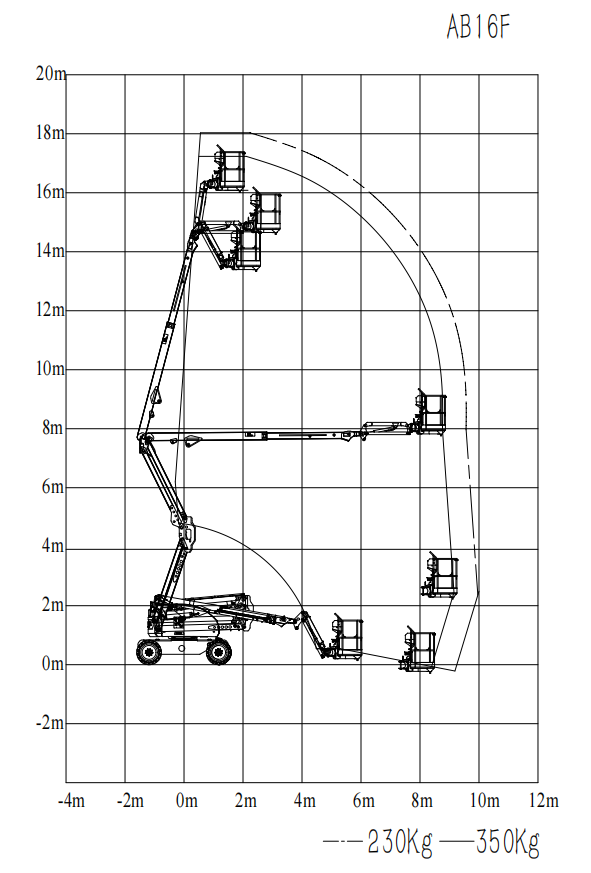

Horizontal reach max.(restricted)	8.1m	26ft7in
Horizontal reach max.(unrestricted)	8.9m	29ft2in
Up and over clearance max.	7.65m	25ftlin
Machine length(stowed)ect)	7.56m	24ft10in
Machine width	2.32m	7ft7in
Machine height	2.39m	7ft10in
Platform length	1.8m	5ft11in
Platform width	0.8m	2ft7in
Ground clearance-center	0.3m	oft12in
Wheelbase	2.35m	7ft9in
Tire	33x12-20

Weight

Weight	Imperial	Metric
Weight
Machine weight²	18518 lb13oz	8400 kg

Performance

Performance	Metric	Imperial
Performance
Rated load	230 kg	507 lb1oz
Rated load- restricted	350 kg	771lb10oz
Drive speed-lowered travel position	4.8 km/h	2.98 mph
Drive speed -elevated travel position	0.8 km/h	0.50 mph
Turning radius (inside)	2m	6ft7in
Turning radius (outside)	4.9m	16ft1in
Turntable tailswing	0m	oftoin
Gradeability- stowed position	45%
Max. platform occupancy	2
Allowable tilt angle (front to back/side to side)	5°
Turntable slewing	360°
Platform rotation	160°

Power

Power
Power
Power		Kubota V2403 36kW
Fuel capacity		65L

①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
