AB14F

The AB14F diesel articulated boom lift delivers powerful performance. As a reliable diesel articulated boom lift, it offers an impressive 45% gradeability and outstanding all-terrain adaptability. This diesel articulated boom lift is easy to operate and ensures stable, reliable performance, making the diesel articulated boom lift ideal for a variety of challenging job sites.

Working Height：16.3m
Overall Width ：2.32m
Platform capacity：230kg

keyword：

Diesel Articulating Boom Lift

Classification：

Diesel Articulating Boom Lift

Tel：

+86 0731-84822566

E-mail：

info@kingdamade.com

Related Products

Advisory Message

AB14F

Diesel Articulating Boom Lift is becoming an essential solution for construction, maintenance, and industrial aerial work. Designed with powerful diesel engines and flexible articulated arms, this equipment can easily reach difficult angles and high working areas. Its strong off-road capability allows stable operation on rough terrain, making it ideal for outdoor projects, shipyards, warehouses, and large construction sites.

Modern Diesel Articulating Boom Lifts feature advanced hydraulic systems, precise controls, and enhanced safety protection. Operators can move smoothly around obstacles while maintaining excellent stability at height. The spacious platform improves working comfort and efficiency, helping teams complete demanding tasks faster and more safely.

Many contractors choose diesel boom lifts to reduce labor costs and improve productivity during building maintenance, steel structure installation, and equipment repair. The durable structure and reliable lifting performance support long service life even under harsh working conditions.

With outstanding flexibility, strong lifting power, and dependable safety features, Diesel Articulating Boom Lift continues to support efficient high-altitude operations across modern industries worldwide

Nothing

AB16F

Measurements

Measurement	Metric	Imperial
Measurement	Metric	Imperial

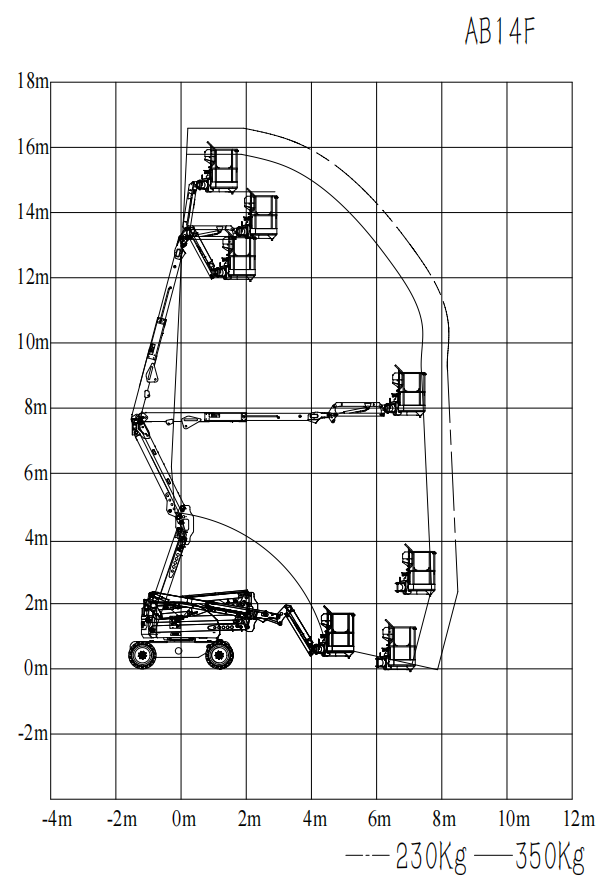

Working height max.1	16.3m	53ft6in
Platform height max.	14.3m	46ft11in
Horizontal reach max.(restricted)	6.7 m	21ft12in
Horizontal reach max.(unrestricted)	7.5m	24 ft7in
Up and over clearance max.	7.65m	25ft1in
Machine length(stowed)lect)	6.85m	22ft6in
Machine length(travelling)	5.7 m	18ft8in
Machine width	2.32m	7ft7in
Machine height	2.39m	7ft10in
Platform length	1.8m	5ft11in
Platform width	0.8m	2ft7in
Ground clearance-center	0.3m	oft12in
Wheelbase	2.35m	7ft9in
Tire	33x12-20

Weight

Weight	Metric	Imperial
Weight
Machine weight²	7500 kg	16534 lb11 oz

Performance

Performance	Metric	Imperial
Performance
Rated load	230 kg	507 lbloz
Rated load- restricted	350 kg	771 b10oz
Drive speed-lowered travel position	4.8 km/h	2.98 mph
Drive speed-elevated travel position	0.8 km/h	0.50 mph
Turning radius (inside)	2m	6ft7in
Turning radius (outside)	4.9m	16ftlin
Turntable tailswing	0m	oftoin
Gradeability- stowed position	45%
Max. platform occupancy	2
Allowable tilt angle (front to back/sidetoside)	5°
Turntable slewing	360°
Platform rotation	160°

Power

Power
Power
Power		Kubota V2403 36kW
Fueltank capacity		65L

①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
