TB42F

The TB42F diesel telescopic boom lift features an X-shaped outrigger design for enhanced stability. This diesel telescopic boom lift easily reaches high-altitude work points and efficiently covers large working areas, making it a reliable diesel telescopic boom lift for demanding job sites.

Working Height：43.66m
Overall Width ：2.49m
Platform capacity：300kg

keyword：

Diesel Telescopic Boom Lift

Classification：

Diesel Telescopic Boom Lift

Tel：

+86 0731-84822566

E-mail：

TB42F

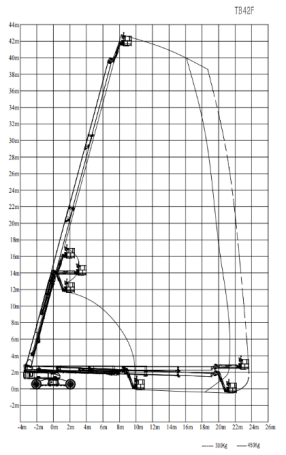

Measurements

Measurement	Metric	Imperial
Measurement	Metric	Imperial
Working height max.1	43.66 m	143ft3in
Platform height max.	41.66 m	136ft8in
Horizontal reach max.(restricted)	22m	72ft2in
Horizontal reach max.(unrestricted)	23.6m	77 t5in
Machine length	12.86 m	42ft2in
Machine width	2.49m	8ft2in
Machine height	3.05m	10ftoin
Platform length	2.2m	7ft3in
Platform width	0.8m	2ft7in
Ground clearance-center	0.37m	1ft3in
Wheelbase	4.12m	13ft6in
Tire	445/65-24

Weight

Weight	Metric	Imperial
Machine weight²	23800 kg	52470 lb 0 oz

Performance

Performance	Metric	Imperial
Rated load	300 kg	661 lb6oz
Rated load- restricted	450 kg	992lbloz
Drive speed -lowered travel position	4.8 km/h	2.98 mph
Drivespeed-elevatedtravelposition	0.8 km/h	0.50 mph
Turning radius (inside)	2.65m	8ft8in
Turning radius (outside)	6.05m	19ft10in
Turntable tailswing	1.68 m	5ft6in
Gradeability- stowed position	35%
Max. platform occupancy	2
Tilt sensor activation (front to back/side to side)	5°
Turntable slewing	360°
Platform rotation	160°

Power

Power
Power		Cummins QSF2.8 54kW
Fuel capacity		150L

①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
