TB38F

The TB38F diesel telescopic boom lift features an X-shaped outrigger design for enhanced stability. This diesel telescopic boom lift easily reaches high-altitude work points and efficiently covers large working areas, making it a reliable diesel telescopic boom lift for demanding job sites.

Working Height：40.03m
Overall Width ：2.49m
Platform capacity：300kg

keyword：

Diesel Telescopic Boom Lift

Classification：

Diesel Telescopic Boom Lift

Tel：

+86 0731-84822566

E-mail：

TB38F

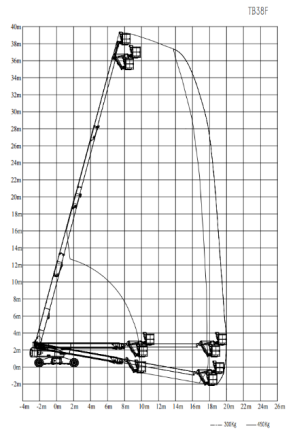

Measurements

Measurement		Metric
Measurement		Metric
Maximum working height		40.03 m
Maximum platform height		38.03 m
Machine length		14.5 m
Machine width		2.49 m
Machine height		3.05 m
Platform length		2.2 m
Platform width		0.8 m
Minimum ground clearance - center		0.37 m
Wheelbase		4.12 m
Tire		445/65 - 24

Weight

Weight
Machine weight		22320 kg

Productivity

Performance
Workload		300 kg
Workload - Limited		450 kg
Driving speed - collection status		4.8 km/h
Travel speed - lifting state		0.8 km/h
Inner min turn radius		2.65 m
Outer min turn radius		6.05 m
Turntable tail swing		1.86m
Maximum climbing ability		40%
Maximum number of workers		2
Allowable working angle		5°
Turntable rotation angle		360°
Platform swing angle		160°

Power

Power
Power		Cummins QSF2.8 54kW
Fuel capacity		150L

①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
