AB14EN

The AB14EN electric narrow articulated boom lift is an electric narrow articulated boom lift powered by electricity, offering the advantages of low noise and zero emissions. This electric narrow articulated boom lift features a compact and flexible design, allowing the electric narrow articulated boom lift to easily operate over obstacles. It is an ideal electric narrow articulated boom lift for complex working environments.

Working Height：16m
Overall Width ：1.75m
Platform capacity：230kg

keyword：

Electric Articulating Boom Lift

Classification：

Electric Articulating Boom Lift

Tel：

+86 0731-84822566

E-mail：

AB14EN

Measurements

Measurement	Metric	Imperial
Measurement	Metric	Imperial

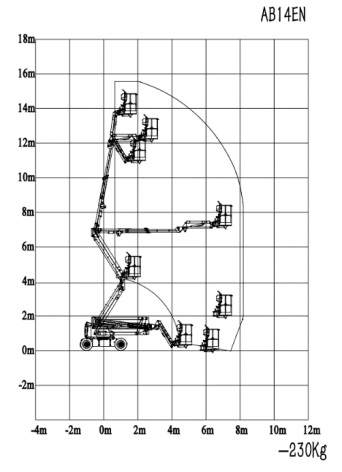

Working height max.1	16 m	52ft6in
Horizontal reach max.(unrestricted)	14 m	45ft11in
Up and over clearance max.	7.5 m	24ft7in
Maximum span height	7.02 m	23ftoin
Machine length(collect)	6.4 m	20ft12in
Machine width	1.75 m	5ft9in
Machine height	2 m	6ft7in
Platform length	1.8 m	5ft11in
Platform width	0.8 m	2ft7in
Ground clearance-center	0.22 m	oft9in
Wheelbase	2 m	6ft7in
Tire	250 - 15

Weight

Weight	Metric	Imperial
Machine weight²	6100 kg	13448 lb3 oz

Performance

Performance	Metric	Imperial
Rated load	230 kg	507Ib1oz
Drive speed -lowered travel position	4.8 km/h	2.98 mph
Drive speed -elevated travel position	0.8 km/h	0.50 mph
Turning radius (inside)	1.5m	4ft11in
Turning radius (outside)	3.3m	10ft10in
Turntabletailswing	0m	oftoin
Gradeability- stowed position	30%
Max. platform occupancy	2
Allowable tilt angle (front to back/side toside)	3°/4°
Turntable slewing	355
Platform rotation	160°
Platform swing angle

Power

Power
Power(AGM battery/lithium battery)		48V DC/51.2V DC
Battery capacity		351AH/300 AH

①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
