TB28F

The TB28F diesel telescopic boom lift delivers powerful performance with a 45% gradeability, making it an exceptional diesel telescopic boom lift. This diesel telescopic boom lift supports a maximum load of 450 kg and is equipped with four-wheel drive and full-time oscillating axles, ensuring outstanding off-road capability for the diesel telescopic boom lift across various terrains. It is the ideal diesel telescopic boom lift choice for demanding applications.

Working Height：29.86m
Overall Width ：2.49m
Platform capacity：300kg

keyword：

Diesel Telescopic Boom Lift

Classification：

Diesel Telescopic Boom Lift

Tel：

+86 0731-84822566

E-mail：

TB28F

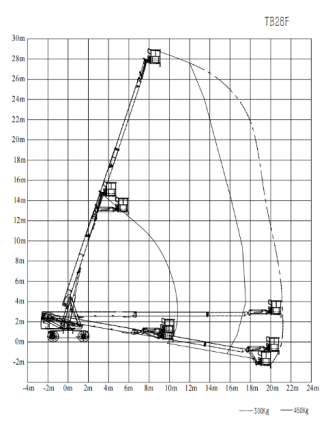

Measurements

Measurement	Metric	Imperial
Measurement	Metric	Imperial
Working height max.1	29.86 m	97ft12in
Platform height max.	27.86 m	91ft5in
Horizontal reach max.(restricted)	17m	55ft9in
Horizontal reach max.(unrestricted)	21m	68ft11in
Machine length	13.16m	43ft2in
Machine width	2.49m	8ft2in
Machine height	2.91m	9ft7in
Platform length	2.2m	7ft3in
Platform width	0.8m	2ft7in
Ground clearance -center	0.4m	1ft4in
Wheelbase	3m	9ft10in
Tire	385/65D22.5

Weight

Weight	Metric	Imperial
Machine weight²	17000kg	37478 lb9oz

Performance

Performance	Metric	Imperial
Rated load	300 kg	661lb6oz
Rated load- restricted	450 kg	992lb1oz
Drive speed-lowered travel position	4.8 km/h	2.98 mph
Drivespeed-elevatedtravelposition	0.8 km/h	0.50 mph
Turningradius (inside)	2.65 m	8ft8in
Turning radius (outside)	5.88 m	19ft3in
Turntable tailswing	1.48 m	4ft10in
Gradeability- stowed position	45%
Max. platform occupancy	2
Tilt sensor activation (front to back/side to side)	5°
Turntable slewing	360°
Platform rotation	160°

Power

Power
Power		Cummins QSF2.8 C49 37kW
Fuel tank capacity		150L

①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
