TB32F

The TB32F diesel telescopic boom lift adopts four-wheel drive and is equipped with a full-time oscillating axle. This diesel telescopic boom lift delivers outstanding off-road performance. At the same time, the diesel telescopic boom lift can easily reach high work points and efficiently cover wide working areas.

Working Height：34.1m
Overall Width ：2.49m
Platform capacity：300kg

keyword：

Diesel Telescopic Boom Lift

Classification：

Diesel Telescopic Boom Lift

Tel：

+86 0731-84822566

E-mail：

TB32F

Measurements

Measurement	Metric	Imperial
Measurement	Metric	Imperial

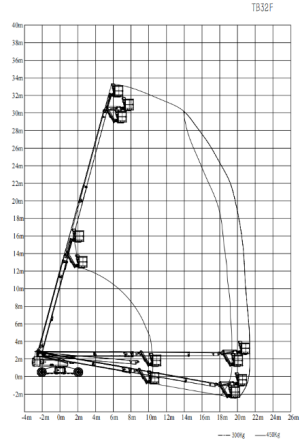

Working height max.1	34.1m	111ft10in
Platform height max.	32.1m	105ft4in
Horizontal reach max.(restricted)	18m	59ftlin
Horizontal reach max.(unrestricted)	20m	65ft7in
Machine length	11.8m	38ft9in
Machine width	2.49m	8ft2in
Machine height	2.9m	9ft6in
Platform length	2.2m	7ft3in
Platform width	0.8m	2ft7in
Ground clearance-center	0.32m	lftlin
Wheelbase	3.2m	10ft6in
Tire	385/65-24/10

Weight

Weight	Metric	Imperial
Machine weight²	17800 kg	39242 lb5oz

Performance

Performance	Metric	Imperial
Rated load	300 kg	661lb6oz
Rated load- restricted	450 kg	992lbloz
Drive speed -lowered travel position	4.8 km/h	2.98 mph
Drivespeed-elevatedtravelposition	0.8 km/h	0.50 mph
Turningradius (inside)	1.99m	6ft6in
Turning radius (outside)	3.68m	12ftlin
Turntable tailswing	1.12m	3ft8in
Gradeability- stowed position	35%
Max.platformoccupancy	2
Tilt sensor activation (front to back/side to side)	5°
Turntable slewing	360®
Platform rotation	160°

Power

Power
Power		Kubota V240336kW
Fuel tank capacity		150L

①The working height is equal to the platform height plus 2 meters.
②The weight refers to the standard configuration and may vary depending on options and national standards.
